Streaming path

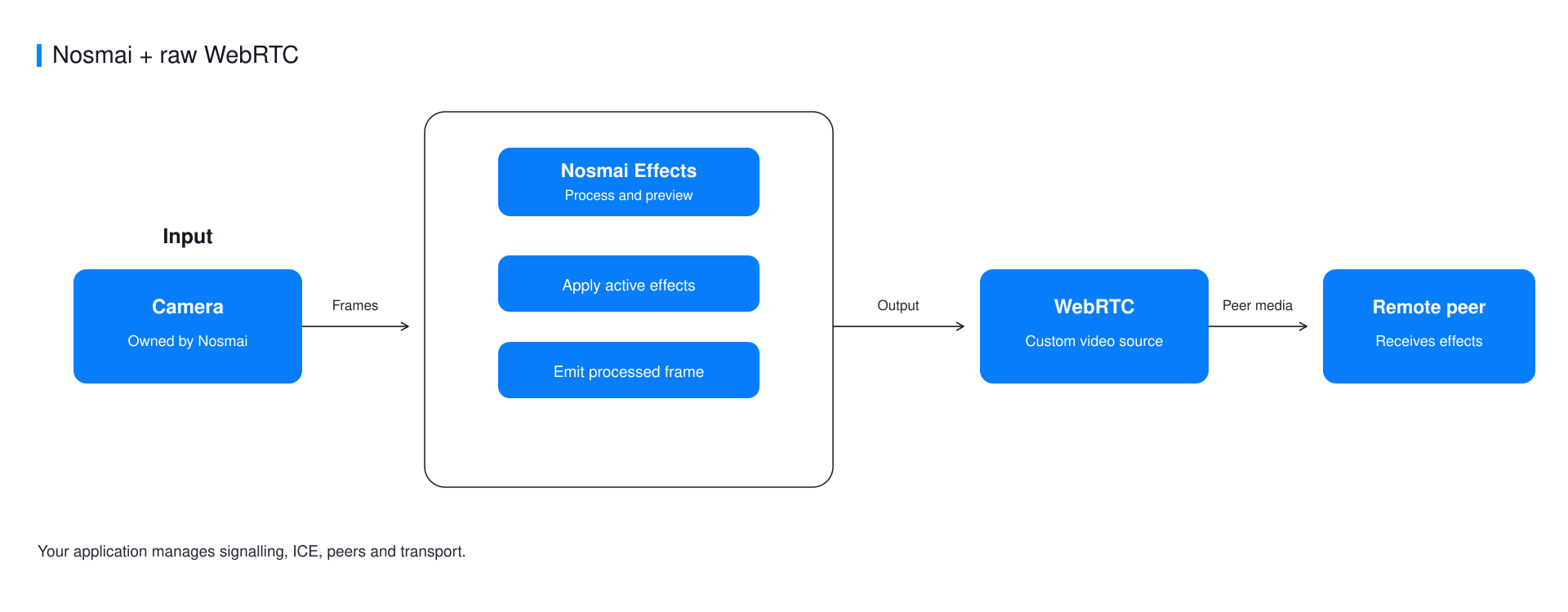

Nosmai processes iOS camera frames before WebRTC publishes them

Nosmai owns camera capture and the local preview. Your WebRTC layer publishes the processed CVPixelBuffer output and manages signalling, peers, ICE, audio, and reconnect behaviour.

Prerequisites

iOS 15 or later on a physical arm64 device
The NosmaiCameraSDK and WebRTC-SDK pods
An authenticated production signalling service
Camera and microphone permission

pod 'NosmaiCameraSDK', '~> 3.0.4'
pod 'WebRTC-SDK', '~> 125.6422.07'

Create a WebRTC video source

let source = peerConnectionFactory.videoSource()
let capturer = RTCVideoCapturer(delegate: source)
let track = peerConnectionFactory.videoTrack(
    with: source,
    trackId: "nosmai-video"
)

peerConnection.add(track, streamIds: ["nosmai-stream"])

Add microphone audio through a normal WebRTC audio source. Do not create a WebRTC camera capturer.

Push processed frames

Keep the Nosmai callback short and forward each buffer to the WebRTC source.

NosmaiCore.shared().liveFrameStreamCallback = {
    pixelBuffer, timestamp in

    let buffer = RTCCVPixelBuffer(pixelBuffer: pixelBuffer)
    let frame = RTCVideoFrame(
        buffer: buffer,
        rotation: ._0,
        timeStampNs: Int64(timestamp * 1_000_000_000)
    )

    source.capturer(capturer, didCapture: frame)
}

The IOSurface-backed buffer is wrapped without a CPU pixel copy. Use liveFrameStreamCallback; replacing the SDK singleton's lower-level callback can detach recording output.

Connect through your signalling layer

Exchange SDP and trickle ICE through your own service. Configure STUN and TURN for the networks your application supports. The example viewer server is only for local verification.

Stop in the correct order

NosmaiCore.shared().liveFrameStreamCallback = nil
peerConnection.close()

Then close signalling and release the WebRTC tracks, source, and capturer.

Common errors

Symptom	Cause	Fix
Preview is live but the peer receives no video	`startProcessing` was not called or the callback was not armed	Start capture and processing, then assign `liveFrameStreamCallback`
Recording stops receiving frames	The lower-level SDK callback replaced `NosmaiCore` fan-out	Use `liveFrameStreamCallback` only
Stream works on Wi-Fi but not across networks	ICE cannot find a viable route	Configure authenticated TURN and inspect ICE state

Verify it worked

Use the example viewer to confirm visible effects, decoded resolution, frame rate, orientation, and a clean reconnect.

Complete example

The native iOS WebRTC example contains the tested frame wrapper, peer connection, signalling client, and browser viewer.

Use Nosmai Effects with WebRTC on iOS
