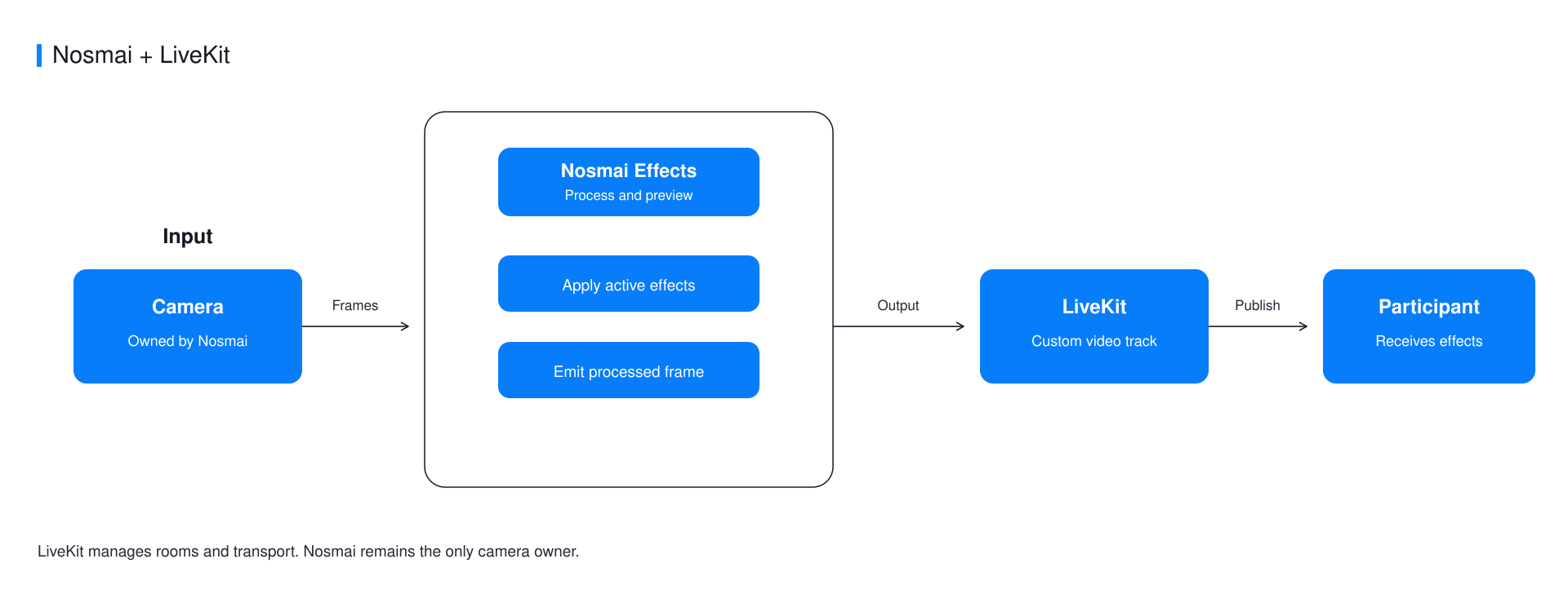

Streaming path

Nosmai processes iOS camera frames before LiveKit publishes them

Nosmai owns the camera and local preview. LiveKit publishes processed CVPixelBuffer output through a BufferCapturer. iOS does not need an EGL share-context step.

Prerequisites

iOS 15 or later on a physical arm64 device
The NosmaiCameraSDK and LiveKitClient pods
A LiveKit server URL and participant token
Camera and microphone permission

pod 'NosmaiCameraSDK', '~> 3.0.4'
pod 'LiveKitClient', '~> 2.0'

Start capture and processing

Both operations are required. startCapture opens the camera; startProcessing starts the effects pipeline.

NosmaiCore.shared().camera?.attach(to: previewView)

guard NosmaiCore.shared().camera?.startCapture() == true else {
    NSLog("Nosmai camera failed to start")
    return
}

NosmaiSDK.sharedInstance()?.startProcessing()

Create a LiveKit buffer track

let room = Room(roomOptions: RoomOptions(
    defaultVideoPublishOptions: VideoPublishOptions(simulcast: false)
))

try await room.connect(url: liveKitURL, token: liveKitToken)

let track = LocalVideoTrack.createBufferTrack(
    name: "nosmai",
    source: .camera
)

guard let capturer = track.capturer as? BufferCapturer else {
    NSLog("LiveKit returned an unexpected capturer type")
    return
}

Push processed buffers

Assign liveFrameStreamCallback, not the SDK singleton's lower-level pixel buffer callback. NosmaiCore uses its callback fan-out for recording and live output together.

NosmaiCore.shared().liveFrameStreamCallback = {
    pixelBuffer, timestamp in

    capturer.capture(
        pixelBuffer,
        timeStampNs: Int64(timestamp * 1_000_000_000)
    )
}

try await room.localParticipant.publish(videoTrack: track)

Keep the callback fast. It runs on Nosmai's render thread, and LiveKit retains the IOSurface-backed buffer it needs.

Stop in the correct order

NosmaiCore.shared().liveFrameStreamCallback = nil
await room.disconnect()

Clear frame production before disconnecting the room, then release the stored track and capturer references owned by your screen or streaming coordinator.

Common errors

Symptom	Cause	Fix
Preview is visible but no frame is published	Capture started without `startProcessing`	Start capture and processing before creating the track
Filters report success but are not visible	The effects queue is not being drained	Call `startProcessing` after camera capture starts
Recording stops receiving frames	The lower-level SDK callback replaced `NosmaiCore` fan-out	Use `liveFrameStreamCallback` only

Verify it worked

Apply a visible filter and confirm a remote participant sees it. Test a camera switch and a second join after teardown.

Complete example

The native iOS LiveKit example contains permission handling, capture, buffer publishing, filters, and teardown.

Use Nosmai Effects with LiveKit on iOS
